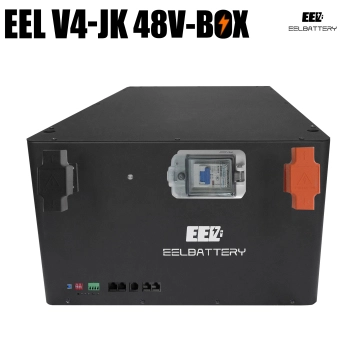

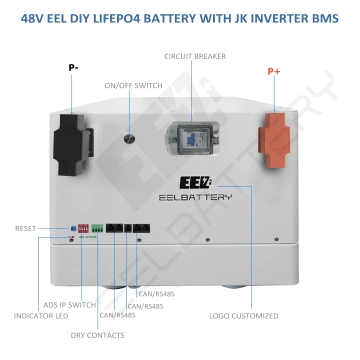

EEL 48V 16S V4-JK BOX čierna
pre domáce skladovanie energie a malé alebo stredné nákupné centrá s použitím 16 článkov batérie
Technické informácie
Battery Type: 280/302Ah Cell
Material: Stainless Steel
Communication: CANBUS/RS485

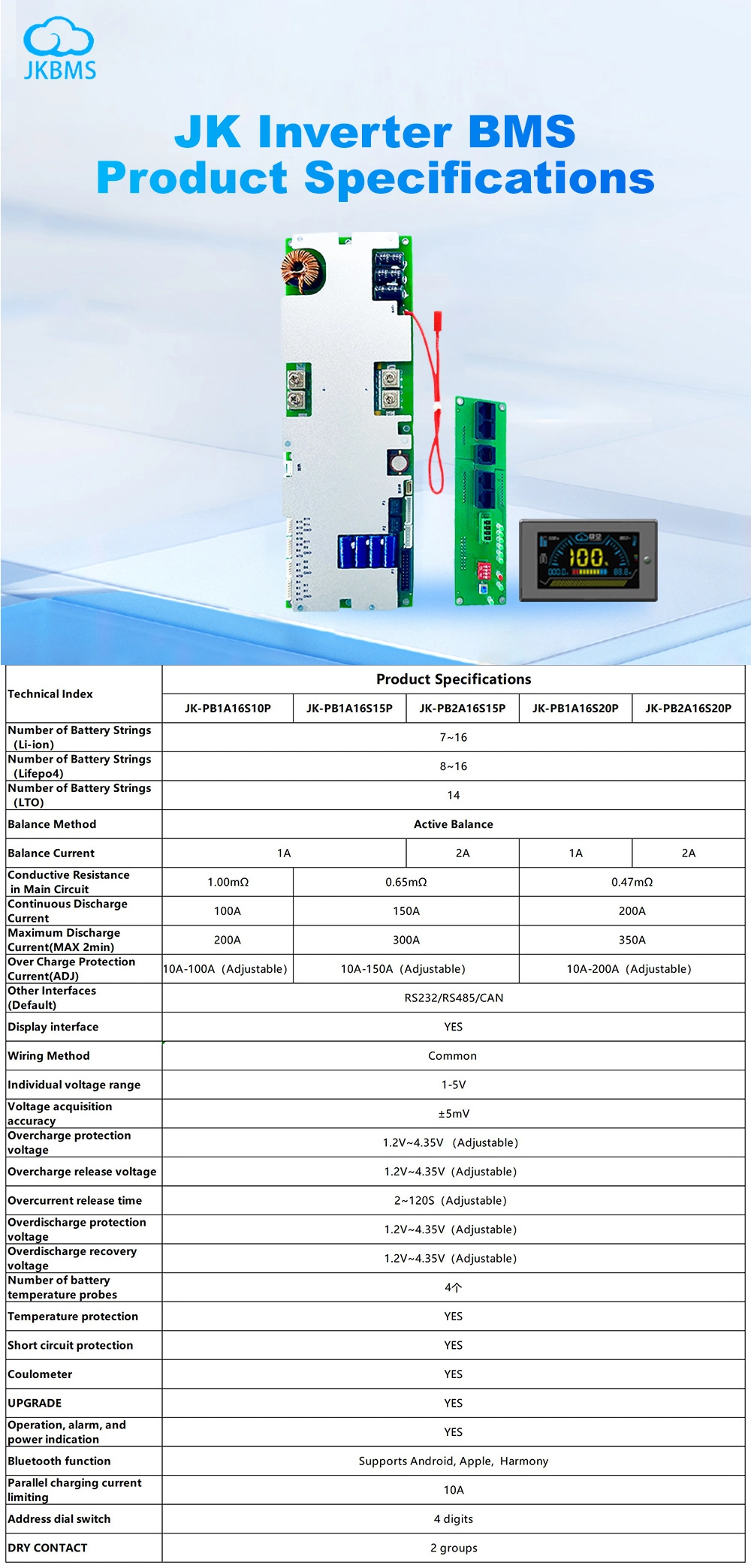

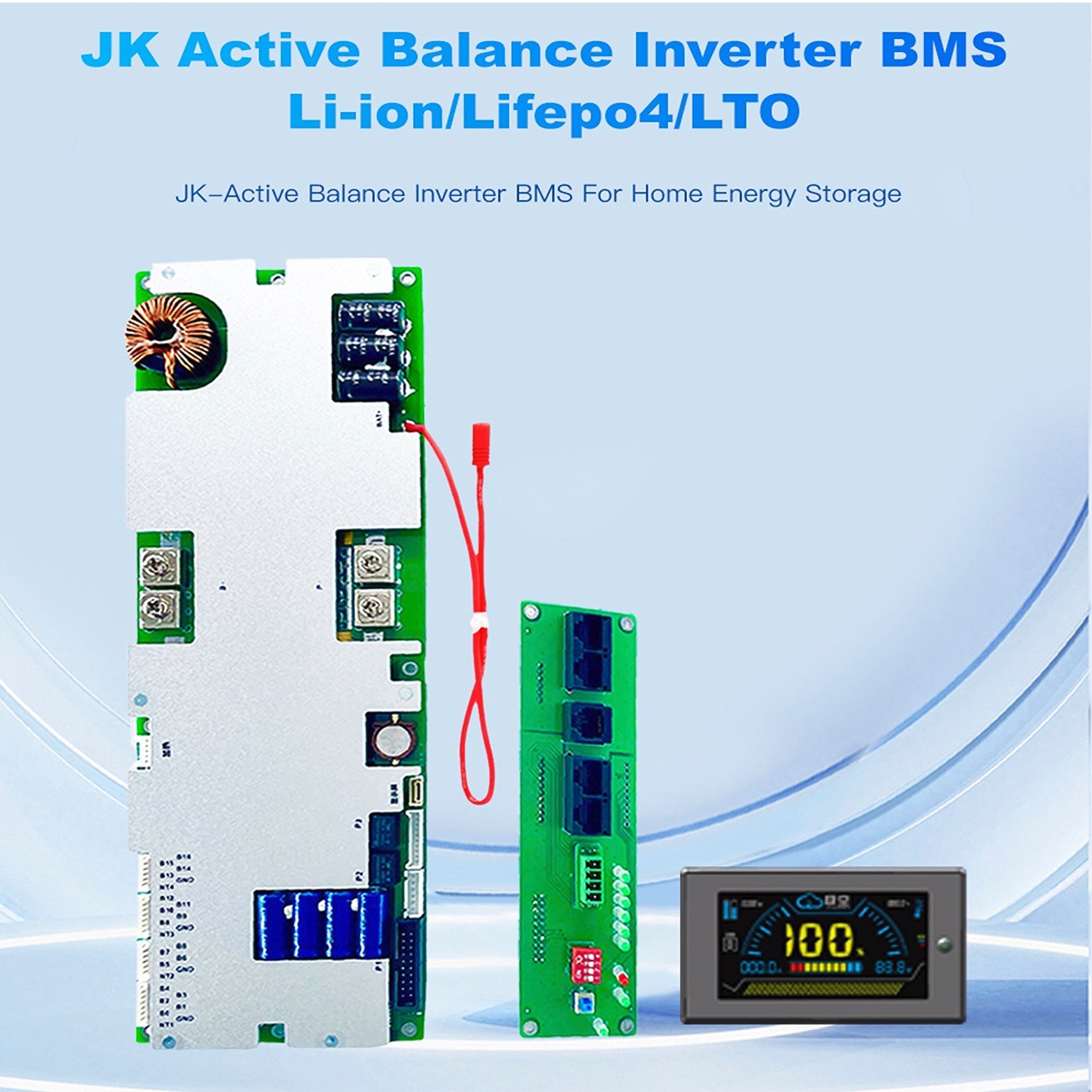

BMS: 48V 16S BMS
Nominal Voltage: 51.2V
Current: 200A
Warranty: 2 Years
Battery Pack Type: Stackable
OEM/ODM: Available
Weight: 24kg
Size: 450×700×263mm
Stackable Type: up to 14 batteries
Zoznam dielov (nedodáva sa s bateriovými článkami)
1 Battery Case (Bottom case, Front Bracket, 2Top Bracket, Front Panel, Top cover)
10 Epoxy board (Between cell and the case)
2 PCB Board (with sheet copper wires) for BMS and Cells Connection+2*matched EVA Tape
1 Weak electric switch

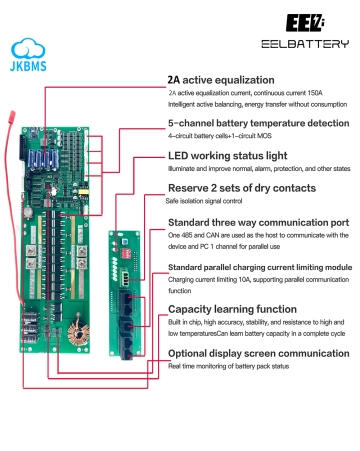

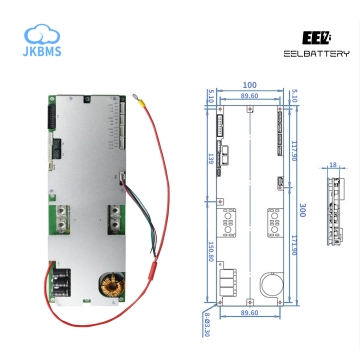

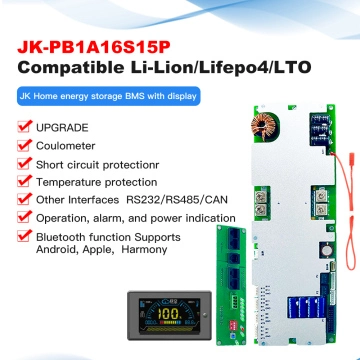

1 48V 16S JK BMS+2*BMS wires+1*adapter
1 Circuit Breaker
2 Battery Terminals (P+ Terminal and P- Terminal)
5 Long Flexible busbars (BMS connection)
15 Flexible busbars (Cell connection)
4 Handle
4 Upper and Lower Latch lock
26 EVA Tape (Between cells)
Other Small Accessories
